Mining Equipment End Covers for Mobile and Semi-Mobile Plants

A mobile crushing plant moves, and every heavy casting inside it has to survive that movement as well as the duty it was designed for.

A semi mobile crusher end cover carries the additional demands of transport, repeated assembly and a steel foundation that flexes under load.

The same casting that gives decades of service in a fixed plant can fail early on a skid mounted unit if those differences are ignored at the design stage.

This article looks at what changes when a mill or crusher is built onto a mobile or semi mobile frame, and what a plant should hold as mobile plant spare parts for equipment that relocates.

1. What Mobile and Semi-Mobile Plants Demand from an End Cover

A mobile plant replaces the concrete foundation of a fixed installation with a steel frame, and that single change alters the loads a semi mobile crusher end cover sees.

A concrete foundation is massive and stiff, so it absorbs vibration and holds the bearing centres in alignment.

A steel frame is lighter and more elastic, so part of the dynamic load returns to the casting and the alignment of the two ends depends on the frame rather than on the ground.

A typical semi mobile frame carries 15 to 40 tonnes of machine mass on a skid 6 to 12 metres long, and that figure sets the design brief for every casting mounted on it.

The consequences appear in three places.

Bolt preload matters more, because a bolted joint on a flexible frame loosens sooner than one on a concrete plinth.

Bearing alignment must be set and checked after every relocation, since the frame can settle or distort during transport.

And the casting itself benefits from a design that tolerates a small amount of misalignment without concentrating stress at the seat.

The table below contrasts the two installation types.

2. Why a Semi Mobile Crusher End Cover Must Be Lighter

A semi mobile crusher end cover is usually designed to a weight target rather than to the heaviest section the foundry can pour.

Transport width, axle load and crane capacity on site each set a ceiling, and a casting that exceeds it becomes a special movement rather than a routine one.

Lighter does not mean weaker.

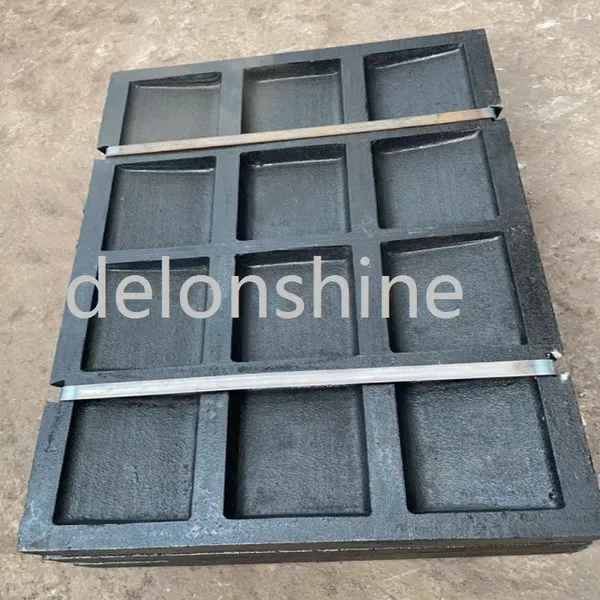

Ribs placed on the outside of the cover add stiffness without adding much mass, and a well ribbed casting can be 20 to 30 percent lighter than a solid one of the same bore.

Section changes should be gradual, since a step between a thick flange and a thin wall concentrates stress just as a sharp tooth root does on a jaw plate.

Shenyang Delonshine Technology Co Ltd reviews the weight target with a customer at the drawing stage, because a change made after the pattern is built costs far more than one made before.

Where a plant needs to shed weight, moving metal from the wall into the ribs is usually the most economical answer.

3. Mobile Plant Spare Parts Strategy for Relocated Equipment

Mobile plant spare parts policy differs from a fixed plant policy because the equipment may be a long way from any workshop when a part is needed.

A fixed plant can often borrow from a sister machine or call in a contractor, and a remote mobile unit normally cannot.

The practical answer is to hold the parts that stop production and to rely on supply for the rest.

Three categories cover most of what a mobile plant needs.

Consumables such as liners and plates wear on a known cycle and can be bought against the tonnage forecast.

Insurance items such as bearings, seals and fasteners fail without warning and are cheap to hold.

And major castings such as an end cover are expensive to hold in full, so the sensible approach is to keep a pattern with the foundry and a confirmed lead time on file.

The table below sets out a workable split for a single relocated plant.

4. Portable Crusher End Cover Design: Trunnion and Bearing Seats

A portable crusher end cover has to locate a bearing accurately on a machine that will be dismantled and rebuilt several times in its life.

That places the bearing seat and the trunnion at the centre of the design, since they set the alignment of the rotating assembly.

The seat is normally machined to a tolerance of a few hundredths of a millimetre on diameter, and it should be checked with an internal micrometer rather than with a caliper.

Machined pads for alignment instruments allow the fitter to confirm squareness to the flange face after each rebuild.

Where a design allows, a removable insert or a split sleeve at the seat protects the casting from scoring when a bearing is changed at a remote site.

A portable crusher end cover also benefits from a machined register on the flange.

A register gives a positive location against the mating part and reduces reliance on the bolt fit alone, which matters when the joint is assembled in the field.

5. Transport Loads and Lifting Points on a Mobile Plant End Cover

Transport is a load case in its own right, and it is easy to overlook because the machine is not running at the time.

A casting travelling by road or sea sees vibration, shock and, in some cases, a bending load applied through an unsuitable sling position.

A road journey of 500 kilometres can transfer more shock to a casting than several weeks of steady operation.

Designed lifting points remove most of that risk.

Threaded holes, cast lugs or a marked sling path tell the rigger where the load should be taken, and each one costs very little at the pattern stage.

Where a casting has no lifting provision, the crew will improvise, and an improvised sling can distort a bearing seat or crack a flange.

A contractor relocating a semi mobile crushing plant between two pits found this out on a drive end cover. The casting had been lifted with a sling passed around the shaft instead of through the designed points, and the unit appeared undamaged on arrival. Within a month the bearing ran hotter than before, and inspection showed that the seat had been pulled out of round during the move. Re-machining the seat and fitting a sleeve added two weeks to the commissioning schedule.

6. Climate and Site Variation for a Semi Mobile Crusher End Cover

A plant that moves between sites may also move between climates, and a casting that behaves well in one place can behave differently in another.

Low temperature is the most direct concern, because steel that is tough at twenty degrees Celsius can become more brittle below minus twenty.

A swing of 40 degrees Celsius between two sites is normal for equipment that moves between regions, and the casting has to stay tough at the colder end of that range.

Material choice addresses it.

A grade with a certified impact energy at low temperature is the normal answer for equipment that will work in a cold region, and the test certificate should be requested with the casting.

Corrosion is the opposite problem, and a humid coastal or tropical site calls for good paint systems, sealed joints and a check on how water drains from the cover recesses.

The table below links a site condition to the design response.

Shenyang Delonshine Technology records the site condition on the order, so the grade and the paint system are chosen for the place where the plant will work.

7. Mobile Plant Spare Parts Inventory for Remote Sites

Mobile plant spare parts kept at a remote site face a slow replacement cycle, and a part that sits on a shelf for three years can deteriorate before it is used.

Rubber seals harden, machined faces rust, and a bearing that was stored in a damp container may already be unfit for service.

Storage practice matters as much as the stocking decision.

Seals and bearings belong in sealed packaging on a shelf rather than on a floor, and machined faces should carry a protective coating that is renewed at each stock check.

A seal stored for 3 years in a damp container can be unfit for service even though it has never been fitted.

Keeping a simple record of the date each item was received lets the plant rotate stock and use the oldest first.

Shenyang Delonshine Technology supplies major castings for mobile and semi mobile plants with the machined faces protected and the lifting points marked, so a part that waits months in a container arrives in fit condition.

Delonshine Technology can also confirm the current lead time for a cover already on file, which turns an emergency into a planned order.

8. When a Portable Crusher End Cover Needs Refurbishment

A portable crusher end cover is often a candidate for refurbishment rather than replacement, because the casting is sound and the wear is confined to a few surfaces.

A scored bearing seat, a worn register or a damaged flange face can usually be machined back to size or fitted with an insert.

Refurbishment has limits.

Cracks in a load carrying section should be assessed by a qualified inspector before any weld repair, and a casting with a crack running through a rib is rarely worth returning to service.

Field welding is also restricted on a mobile site, because a manganese or alloy casting normally needs controlled preheat and cooling that a remote workshop cannot provide.

That is why most refurbishment work returns to a foundry rather than being done at the pit.

An operation in a remote area sent a portable crusher end cover back for refurbishment after five years of steady service. The bearing seat was rebored, new inserts were fitted and the flange face was remachined, and the work came to roughly 30 percent of the price of a new casting.

9. Frequently Asked Questions about Mobile Plant End Covers

9.1 How is a semi mobile crusher end cover different from a fixed plant cover?

A semi mobile crusher end cover is usually designed to a transport weight target, so it carries more ribs and less wall thickness than a fixed plant equivalent of the same bore. It also has to tolerate a steel frame that flexes more than a concrete foundation, which places extra importance on bolt preload and on the alignment of the bearing seats. Lifting points and machined registers are normally specified, because the part will be dismantled and rebuilt several times.

9.2 Which mobile plant spare parts should be held on site?

Mobile plant spare parts fall into three groups, and each calls for a different policy. Wear parts such as liners and plates can be bought against the tonnage forecast, because their life is predictable. Insurance items such as bearings, seals and fasteners fail without warning, cost little and should be held in full. Major castings are the exception, and the practical approach is to keep a pattern with the foundry and a confirmed lead time rather than a complete spare on a shelf.

9.3 What should be checked on a portable crusher end cover before fitting?

A portable crusher end cover should be checked for seat diameter, seat roundness, flange register and bolt hole alignment before it is lifted into position. The seat is normally machined to a tolerance of a few hundredths of a millimetre, so an internal micrometer is the right instrument rather than a caliper. Lifting points, protective coating and the material certificate should be confirmed at the same time, and any damage to a machined face should be reported before fitting begins.

9.4 Can a damaged end cover be repaired at the mine site?

Minor repairs such as dressing a scored seat or replacing a stud are possible at a mine site, but welding a load carrying section usually is not. A manganese or alloy casting needs controlled preheat and slow cooling after welding, and a remote workshop rarely has the furnace to provide it. Cracks in a rib or a flange should be assessed by a qualified inspector, and the practical route for anything beyond surface damage is a return to the foundry for machining or repair under controlled conditions.
